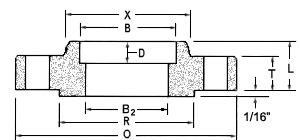

What is a socket weld flange?

A socket weld flange has a recessed bore (socket) that the pipe inserts into. A fillet weld around the hub secures the joint. This design provides excellent strength for small-bore piping up to NPS 4.

What is the gap requirement for socket weld flanges?

Per ASME B16.11, a 1/16 inch (1.6mm) gap must be maintained between the pipe end and the bottom of the socket to allow for thermal expansion and prevent cracking during welding.

What sizes are socket weld flanges available in?

Socket weld flanges are standard in NPS 1/2 through NPS 4 per ASME B16.5. They are available in Class 150 through 2500, though Class 150 through 600 are most common.

SINCE 1993

Socket Flanges

Carbon Steel / Stainless / Alloy Flanges per ASME / ANSI / AWWA / API

Manufacturing and Supplying a complete line of Industrial Pipe Flanges with Multiple materials available.

Get Started

Since 1993, Texas Flange provides ASME Socket Weld, Counter Bore, and Non code Industrial pipe flanges for the Petrochemical, Process, and Waterworks industries in Stainless Steel Industrial Flanges, Alloy Steel Industrial Flanges and Carbon Steel Industrial Flanges.

ANSI, API, AWWA pipe flanges in carbon steel, stainless steel, alloys and chrome steel. Our steel flanges can be Weld Neck, Slip on, Blind, Threaded, Socket Weld, Lap Joint, Orifice Flanges, Ring, and custom steel flanges in sizes 1/2" to 203".

Pressure classes — 75, 125, 150, 175, 250, 300, 350, 400, 600, 900, 1500, 2500, 5K, 10K, 15K, 20K. High Yield — Low Temp.

WHY US?

1/2" – 202" INDUSTRIAL FLANGES

We provide:

ANSI / ASME FORGED FLANGES
MSS-SP-44 FLANGES / ANSI B 16.47 SERIES A
API TYPE 6A — RTJ Face Flanges
API-605 FLANGES / ANSI B 16.47 SERIES B
A.G.A. ORIFICE UNIONS — Furnished with or without Hardware.
ASME BOILER CODE FLANGES
CL. 125 LIGHTWEIGHT FLANGES — For low pressure applications.
PLATE FLANGES — From 1/4" thru 8" Thick, Including AWWA C-207, and all other special designs.
ANSI LONG WELDNECKS & SPECIAL BODY CONNECTORS, HB, E, I1, I2, I3 and CUSTOM
STUDDING OUTLETS (pad flanges) – flat bottom or radiused to fit
SPECTACLE BLINDS — (line blinds, paddle spacers/blinds)
DIN FLANGES
JIS FLANGES
Special Ring Flanges

Materials Used:

CARBON STEEL — ASTM/ASME SA-105, A-350 LF-2, LF-3, A694, SA-516-70, A36
CHROME ALLOYS — A-182-F-1, F-5, F-6, F-9, F-91, F-11, F-12, F-22
STAINLESS STEEL — A-182 — F-304, Dual Grade 304/304L, Dual Grade 316/316L, 316, 304H, Dual Grade 304/304H, Dual Grade 316/316H, 316H, 309, 310, 317L, 321, 347, 347H, 904L, Alloy 20, many other H grades
ALUMINUM — 3003, 6061, 5083 and other grades upon request.
HASTALLOY — B-2, C-276, G, X, C-22
INCONEL — 600, 601, 625, 718
INCOLLOY — 800, 825, 800H, 800HT
MONEL — 400
COPPER — 90/10 (C70600), 70/30 (C71500)
Duplex – F51/2205, F53/2507
TITANIUM — Gr2, Gr12

We also offer a full line of Stainless and Alloy Plate Flame Cutting and Galvanized Carbon Steel Flanges.

There are some grades of steel that no flange producers stock but on occasion are required. We source them and make them per your requirements.

Socket Flanges

Have questions? Contact Socket Flanges.

Get the latest version of our Socket Flanges Catalog.

Texas Flange wants your industrial flange inquiry and will give you your quote quickly!

More Info 281-484-8325
